The Isaac apartments

An apartment development in Grey Lynn that demonstrates that high density and high amenity can go hand in hand.

The Isaac is a contemporary apartment development in the city fringe suburb of Grey Lynn. There are 75 apartments ranging in size and, two commercial units on the ground floor.

The development is within walking distance of West Lynn Village, the Grey Lynn shops and the local school is right next door. The site is well-connected to the city centre and other city fringe locations. The site faces a listed heritage building. The local area comprises a mix of housing types including special character villas.

The three buildings are designed to address Surrey Crescent – with two commercial tenancies providing an active edge to the street – and the internal lane. This is designed to be a high amenity, walkable space which provides an outlook area for the apartments, as well as access to the basement car park.

The site slopes downwards from Surrey Crescent. A major selling point of the development are the communal landscaped roof top terraces and facilities. All residents can have access to the panoramic 360 degree views over Auckland, including views of the harbour, Waitakere Ranges, and the volcanoes and houses of the inner suburbs. The height on the lower building was limited to ensure that the buildings closer to Surrey Crescent could still see over the top.

The design is influenced by the work of Sir Isaac Newton – particularly his work in optics. The detailing on the pre-cast panels on the front of the building references light interference patterns. This theme has been used as a reference to tie different parts of the design together – and can be seen in the landscape treatment, interior design of common areas as well as the front facades of the buildings. As shown here, using an external influence as an inspiration can add richness to the whole project.

The Newton Buildings are named in honour of Sir Isaac Newton, whose seminal work in mathematics and physics—particularly optics—continues to inspire innovation today. As the project at Surrey comprises three buildings, the developer will name them Newton’s First, Second and Third Buildings, acknowledging his three laws of motion. Sculptures interpreting each of these laws will also be installed.

The developer has drawn on Newton’s work in optics, including his discoveries around light interference and the double-slit experiment, to inform the detailing of selected exterior panels. This optical theme will continue through the interior spaces, including foyers and corridors, where colour and lighting will play a central role.

Project information

Rohe/ Location: Grey Lynn, Auckland
Project Type: Apartments
- 75 Apartments
- 2 Commercial tenancies
Site area: 2572 M2 (Gross)
Density: 300 DW/HA (Gross Site Density)
Date of Completion: 2013
Owner/Developer: Ockham Residential
Architecture/Urban Design: Ockham Residential
Parking: Basement access from lane
Price range: High range

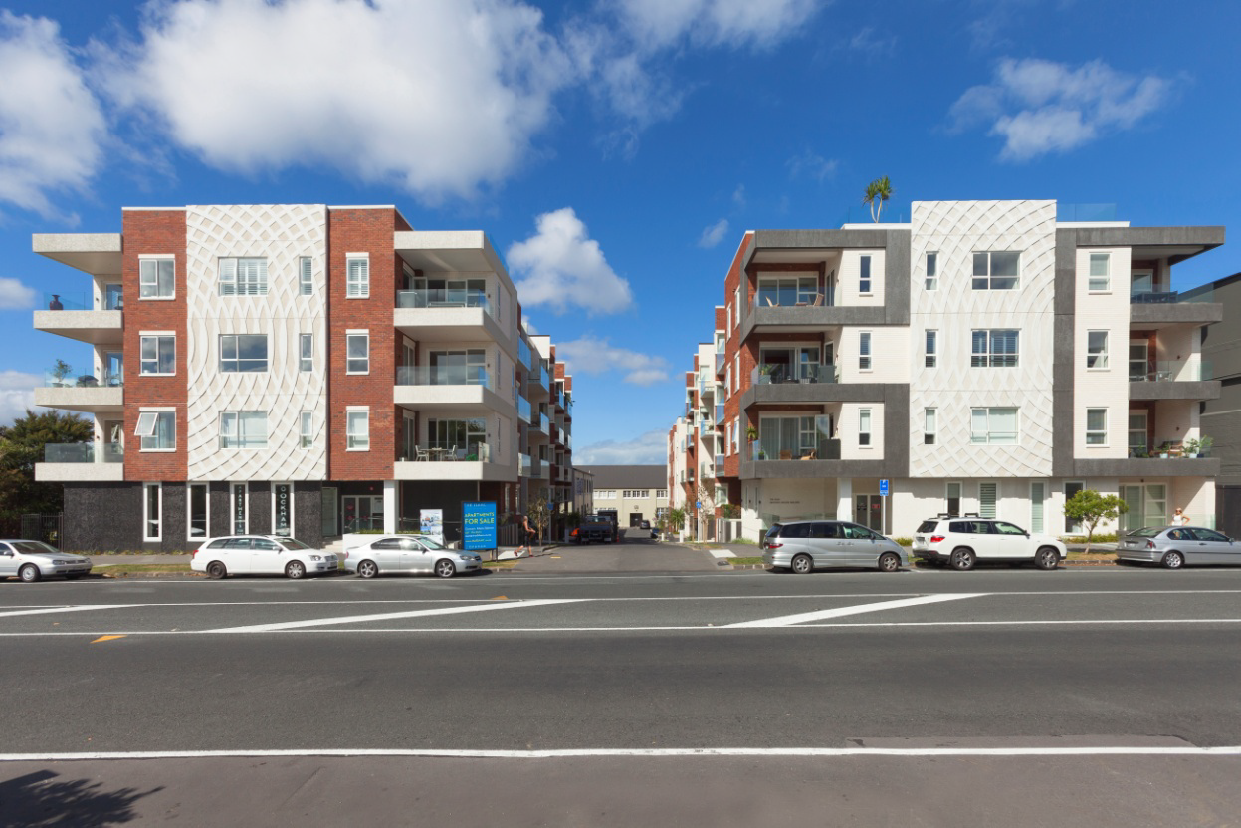

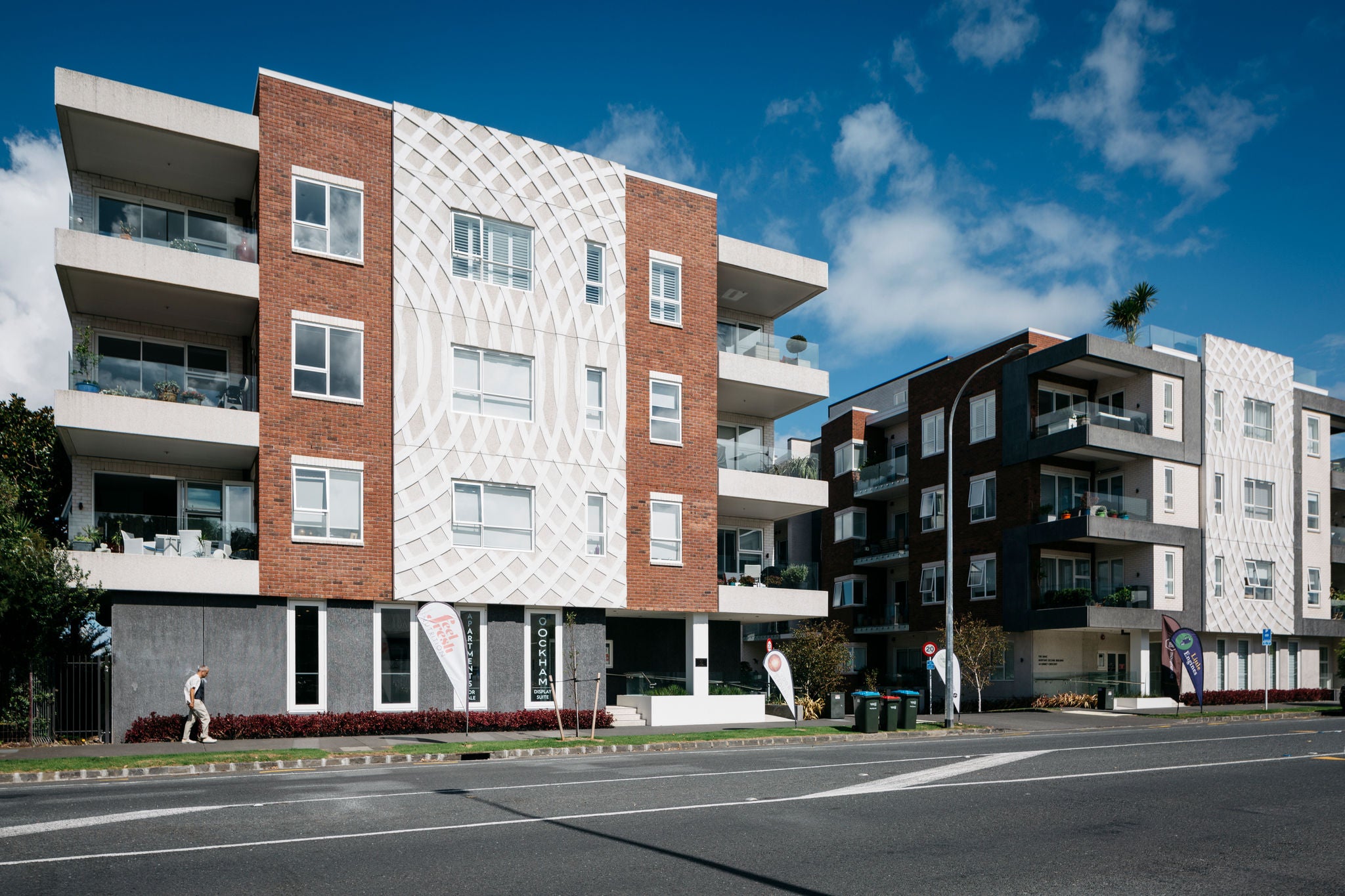

View across the road at the two front Isaac buildings.

Design elements

Understanding the neighbourhood

The development is within walking distance to West Lynn Village, Grey Lynn shops and services and Grey Lynn School. The site is well linked to the city centre and other city fringe locations.
The site faces a listed heritage building and is close to a historic church, and many other character villas which surround the site. The use of brick references the church, but overall, the building is a contemporary, development.
The communal rooftop space is a key design feature of the development. It includes landscaping, a lounge and kitchen facilities, and provides 360 degree views over the city. The site falls to the south, allowing views over the surrounding suburbs.
The immediate area includes commercial buildings along Great North Road an iconic brick church to the east and a modern mixed-use building on the corner of Richmond Road which includes retail and commercial activities.
To provide natural light into the apartments on the western side of 64 Surrey Crescent the building line is stepped back by 5.5m from the boundary, also the existing office building is 1.7m away from the boundary.

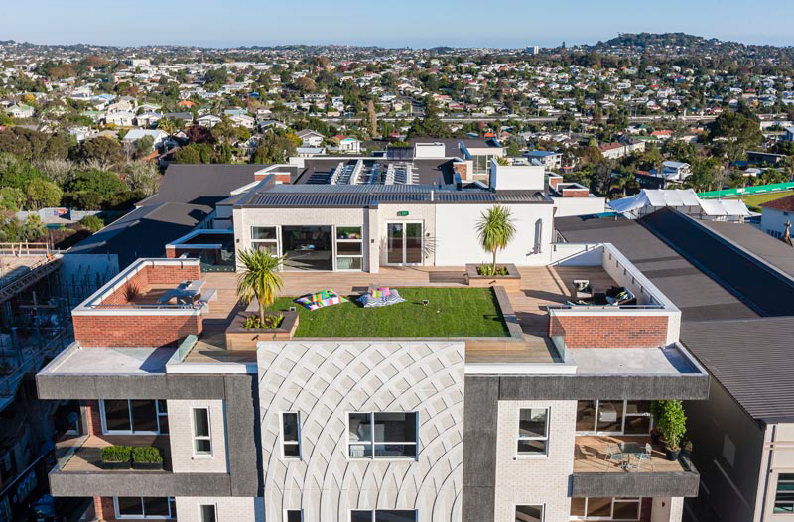

A bird's eye view of the apartment block; there is a patch of lawn with cushions and plants where people can sit and relax.

Placing the buildings on the site

The apartments are arranged across 4 levels (excluding basement) that provides a continuous street edge to Surrey Crescent and the internal lane.
Prior subdivision of the site created a private lane (with existing rights of way easements applying) that divides the site on the North/ South axis and provides access to the commercial buildings located at the rear of the site towards Great North Road. This lane naturally forms the heart of the development and creates three distinct building sites. It also creates additional public frontage and allows many of the potential impacts of the building to be internalised to the site.
The design works well with the topography - car parking is accessed at a lower level and is concealed from view.
Creating a residential scaled connection with the lane was an important consideration in designing the form of the buildings. The walls are angled and have large corner windows to enable the residents to have a northerly visual connection up the lane looking towards Surrey Crescent.

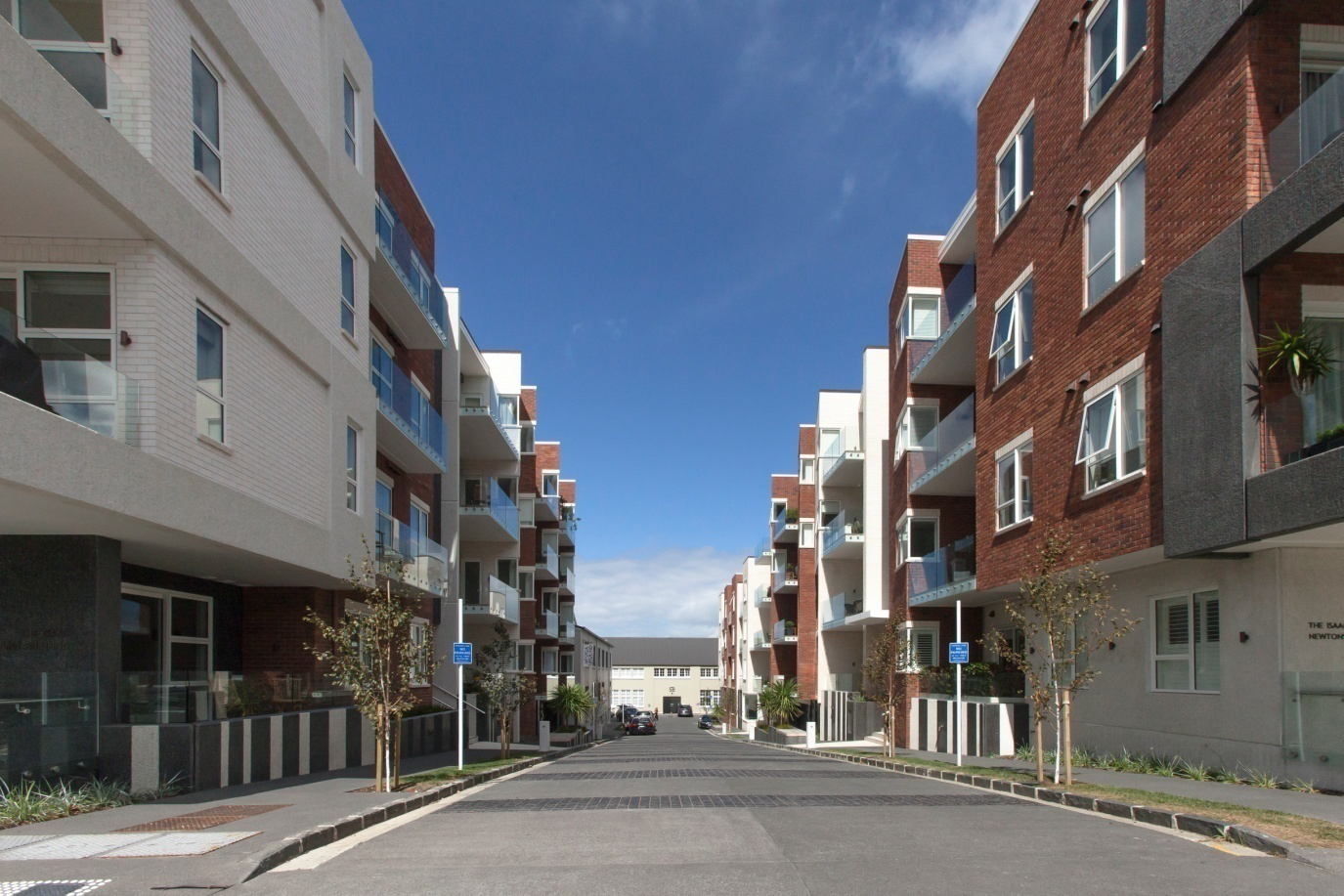

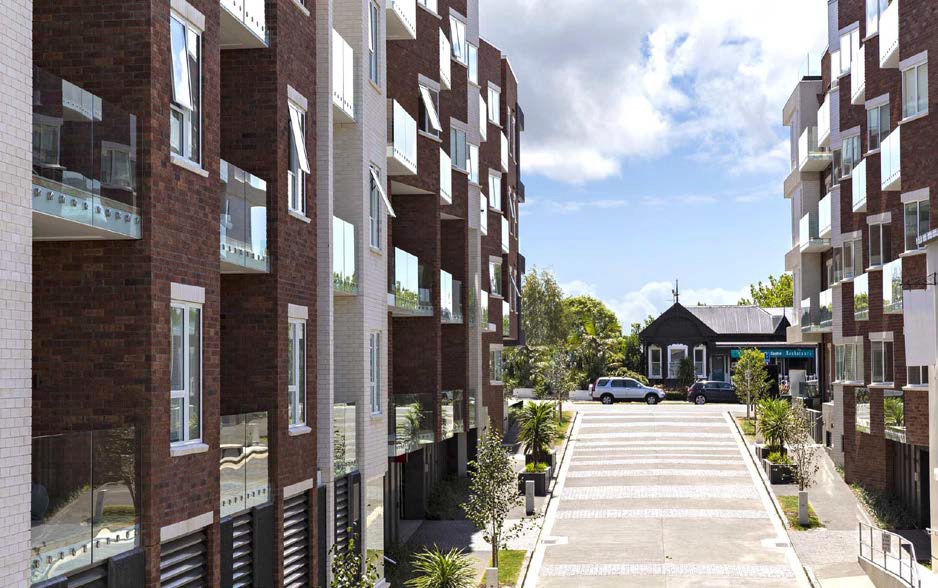

Looking down the joal lined with trees, with the buildings set back from the street.

The private land well designed lane provides a residential scale to the overall development.

Site design

Speed reduction devices - Traffic is slowed down by basalt pavers at the main entry from Surrey Crescent, entries.
The change in texture and material contrast to the that they are leaving the main road and are entering a
The alternating strips of smooth and rough basalt on the front façade. The development uses patterns
Newton to guide design detail in different parts of the development.
Street lighting, includes a mixture of in-ground demarcating the main entries and pedestrian paths.
Having a central lane through the development provides separation between the circulation spaces and provides a sense of openness to Surrey Crescent.
The lane is safe and secure due to the ‘eyes on the street’ from the balconies and windows.
The lane is 14m wide from building face to building on street parking is provided to maintain openness and visual appeal of the street.

Looking down at the street with plants and trees planted on the sidewalk.

Birds eye view looking down the private lane towards Surrey Crescent.

Planters provide seating adjacent to entries for both apartment dwellers and visitors.
Bicycle stands for visitors are located at main entries in addition to those located in basement car parks for residents.
Planting schedule - The plant species consist of native miniature flaxes and shrubs, Hebe type ground covers, cabbage trees and deciduous silver birches were selected allowing light to enter the apartments in winter but provide green leafy shade in the Summer.
While the buildings have different material and textural treatments to their facades, the planting, hone and splashed concrete retaining walls and hedge types are consistent – creating a landscape theme through the development and reinforcing the sense of identity within the site.

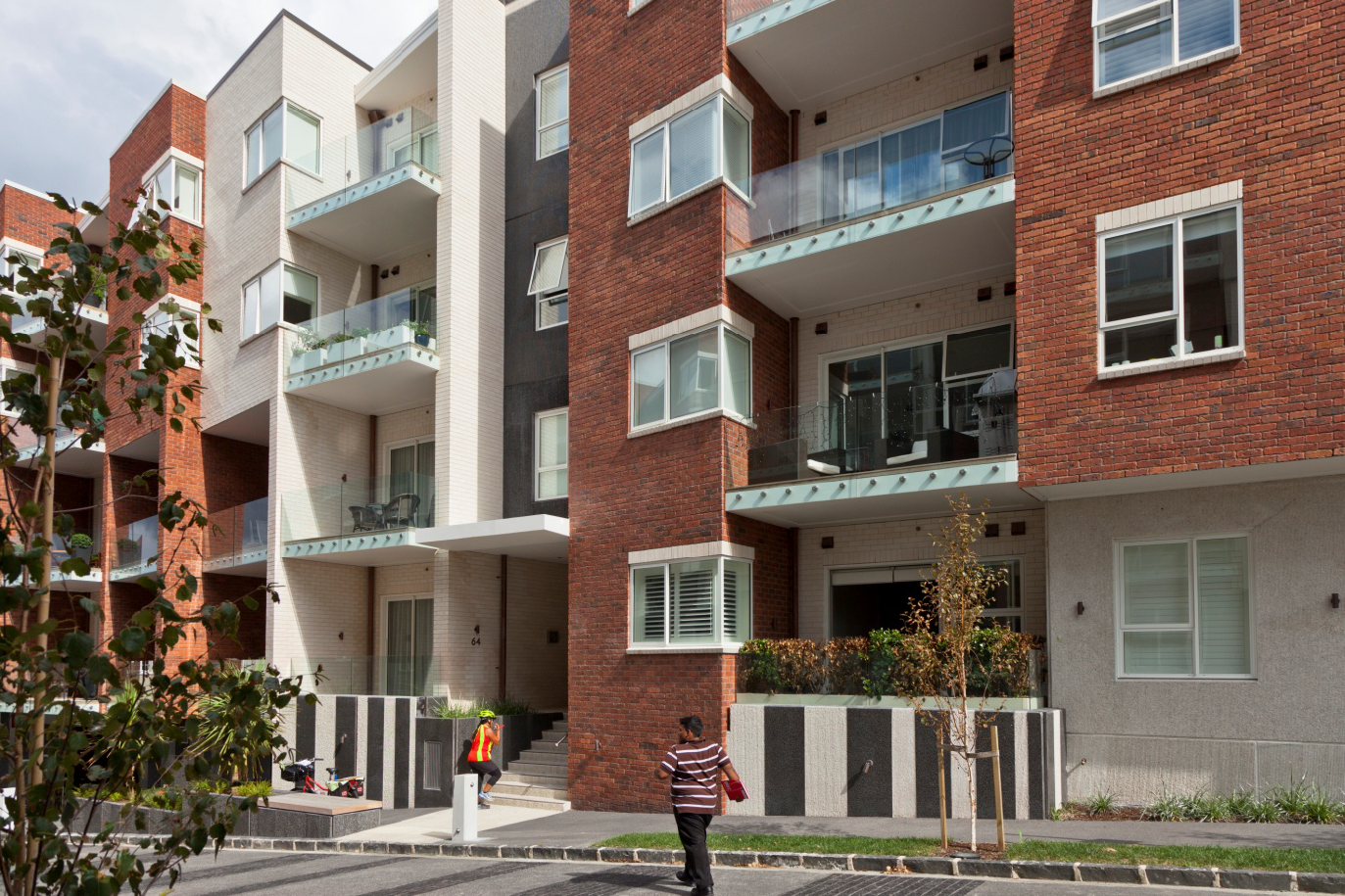

Looking up at the building from street level; the buildings have nicely textured brick walls and modern glass balconies.

The entrance lobbies are well-connected to the street and has generous dimensions.

Street to the front door

Ground floor apartments have useable private open spaces. The combination of an elevated ground floor level relative to the street, a concrete up-stand and, permeable balustrades balances privacy for the occupants with overlooking of the street.
Access to the apartments is via communal apartment lobbies and internal corridors. The entry space is well designed – generous in scale, has a large covered outdoor area, is easy to see from the lane and is welcoming.
Providing access for people in wheelchairs would have improved the building and allowed ease of use by people with a range of abilities.

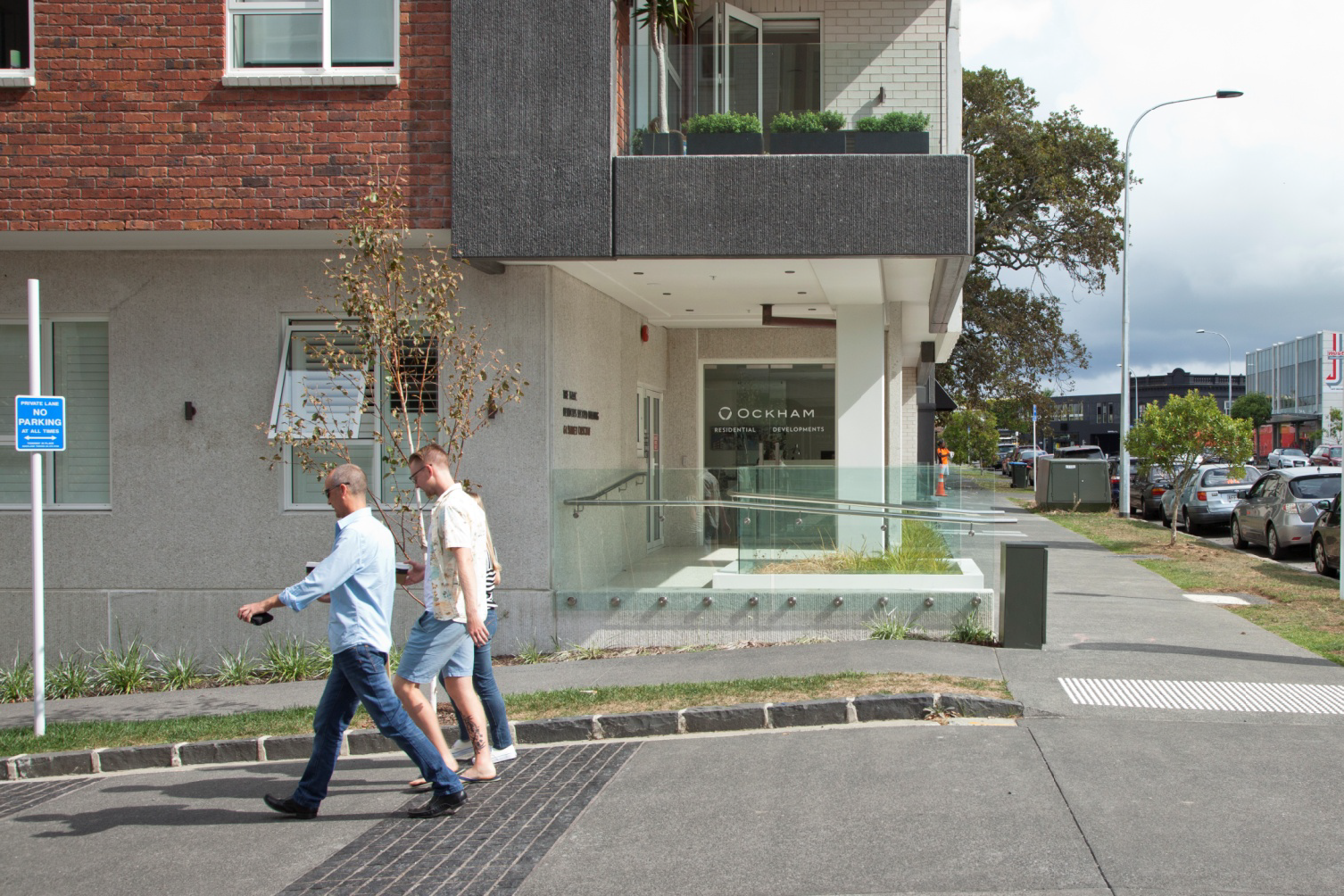

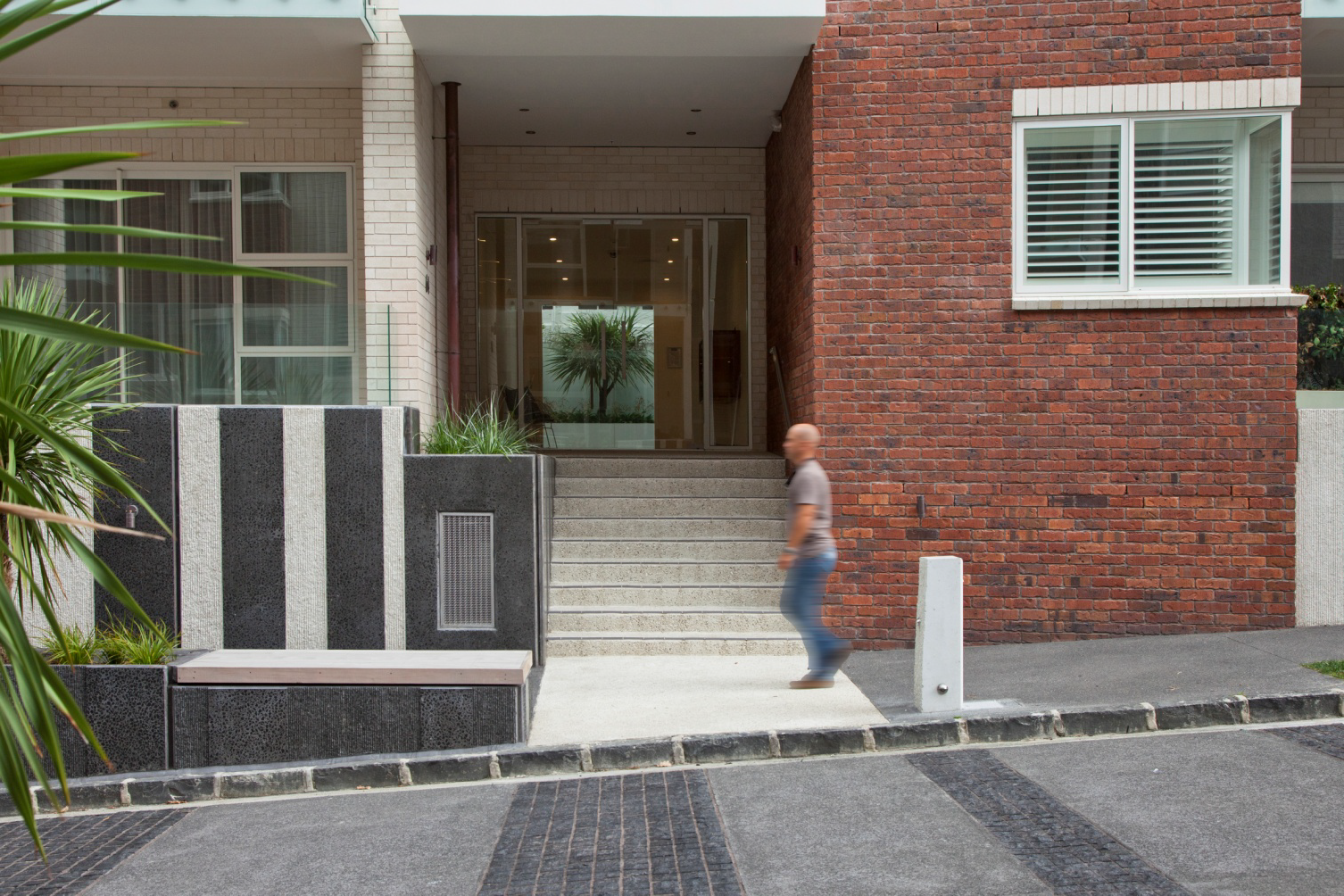

Looking into a lobby from the street, a man is walking past.

The entrance lobbies are well-connected to the street and has generous dimensions.

Extensive overlooking from upper apartments contributes to the safety of the street and internal lane.
The ground floor addresses both Surrey Crescent and the internal lane, which in turn accentuates the entry and identity of the commercial tenancies.
The two commercial spaces are accessed from Surrey Crescent – which has the greatest footfall and is the most visible part of the development.
The commercial entrance is close to the street and the lane and incorporates an accessible ramp - allowing for easy pedestrian circulation.
The two commercial tenancies create an active edge to the street, and a sense of entry into the development.

Looking across the street at the ground floor, there are offices and people milling about.

The commercial entrances are well integrated with the Surrey Crescent interface.

The building

The main pedestrian entrance at the street corner provides clear legibility to the building entry, which also successfully addresses Surrey Crescent and the private lane.
Building materials are designed for long-life and low maintenance with thoughtful detailing to modulate the façade.
All habitable rooms except for bedrooms on level 4 open onto recessed balconies between 1.6m and 2.5m wide.
Masonry walls give a good level of acoustic privacy, both inside and out. Deep balconies offer a buffer between the interior of apartments and the street edge, while also providing protection from the elements.
High thermal mass of the building (in situ and pre-cast concrete elements, concrete block work, brick and exposed aggregate panels) contributes towards minimising temperature fluctuations within apartments and help to delay and reduce solar heat gain.
The pattern on the precast panels is in direct reference to the light interference patterns created in Sir Isaac Newton’s ‘double slit’ experiments. This pattern has been used elsewhere to help give the building a unique sense of identity.

On a blue sky day looking across the street at the Isaac apartment blocks.

Looking towards the overall development from Surrey Crescent.

Outdoor spaces

A range of secluded and shared open spaces are provided, including a communal courtyard area, roof top area and individual patios for ground and second floor units.
All internal living spaces on the ground floor apartments are closely linked with shared outdoor deck areas. Privacy is maintained and balanced with the communal space via planting and hard landscaping features.
The building is stepped back from the neighbours to provide natural light into the apartments, the circulation space, and the adjacent building. Even though planning controls allowed this building to be built up to the boundary, providing a spacious, light area for outlook and circulation adds value to both buildings.
Rooftop gardens and communal spaces have been included on each building to take advantage of the spectacular views from the Surrey Crescent ridge. Ground level communal space was not viable given the substantial area of the site that is taken up by the private lane. The roof gardens have been orientated to be shielded from the southwest prevailing winds.

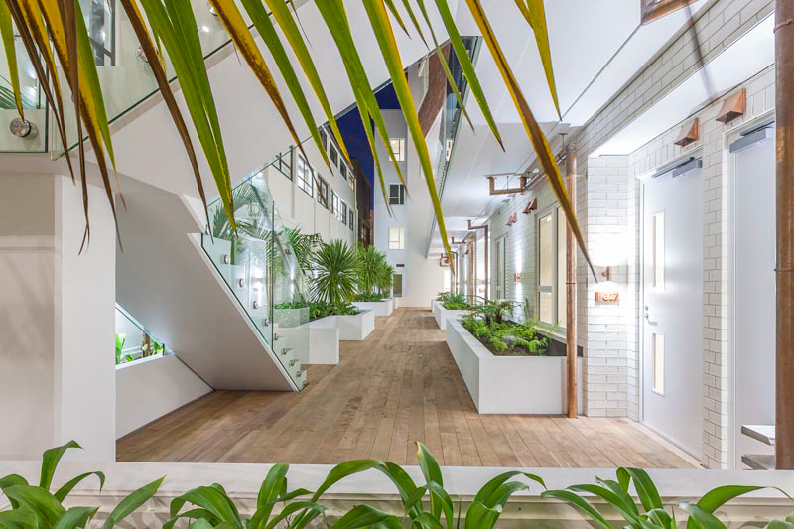

A luxurious, modern internal courtyard with plants, copper spouting, wooden floors and glass balconies.

Looking into the internal courtyard which opens out on individual units on the second floor.

The balconies are large enough to allow the residents and guests to have a BBQ and sit down together around a table.
Internal living areas are well integrated with the balconies. Almost all of the apartments have either east/west or north facing balconies for good solar access, with only 2 apartments have south facing balconies. The lack of sun is balanced with having views over the Waitakere ranges

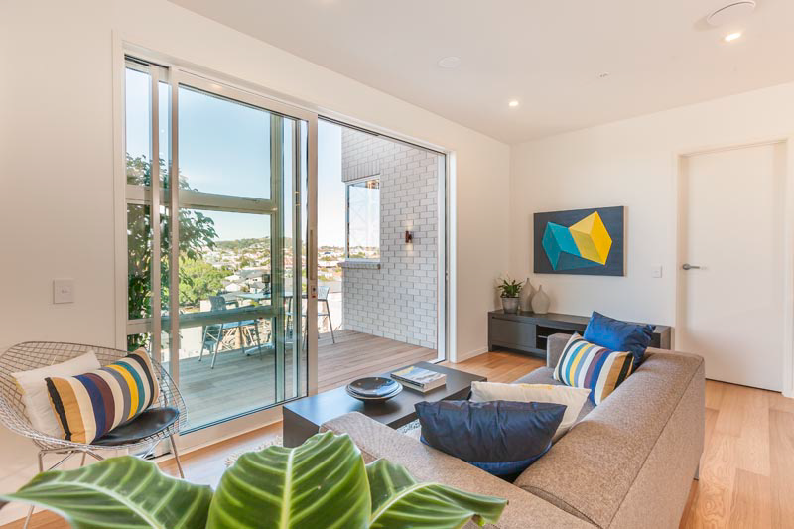

A modern apartment interior, looking out at the recessed balcony. It has a great view of one of Auckland's maunga.

Internal living spaces are well integrated with the balconies for added comfort and refuge.

Accommodating the car

There are 2 levels of basement car parking for each building. The design of the parking levels works with the slope of the site – at the ‘top’ of the site next to Surrey Crescent the parking is half a level above ground. At the bottom of the slope, where it is less visible it is a full floor above ground level.
All access to the carparking is taken off the lane. No parking structures or doors are visible from Surrey Crescent.

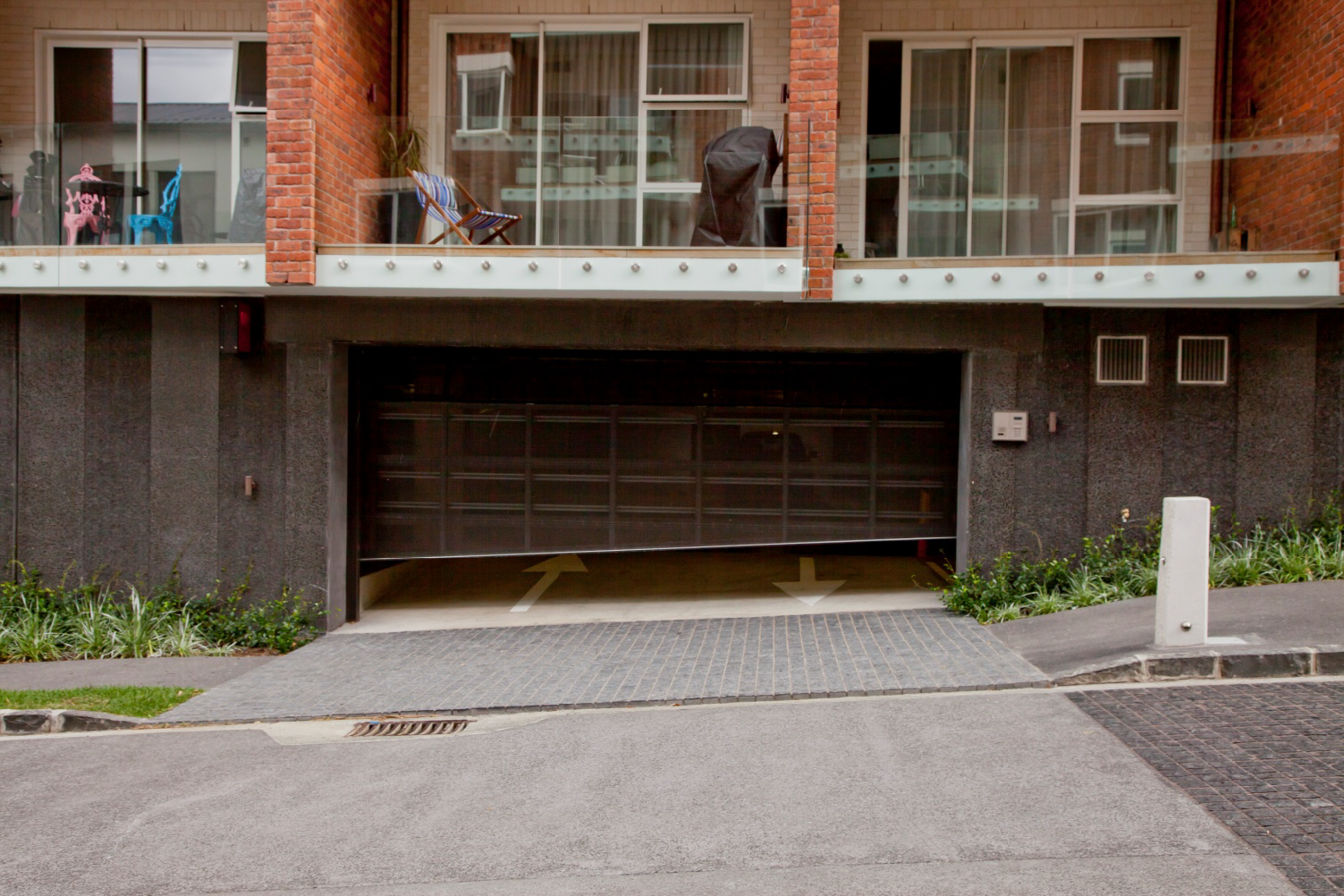

Looking across the street at the garage basement door as it opens to the street.

All access to the carparking (basement) is taken off the private lane and not visible from Surrey Crescent.

Floor plans

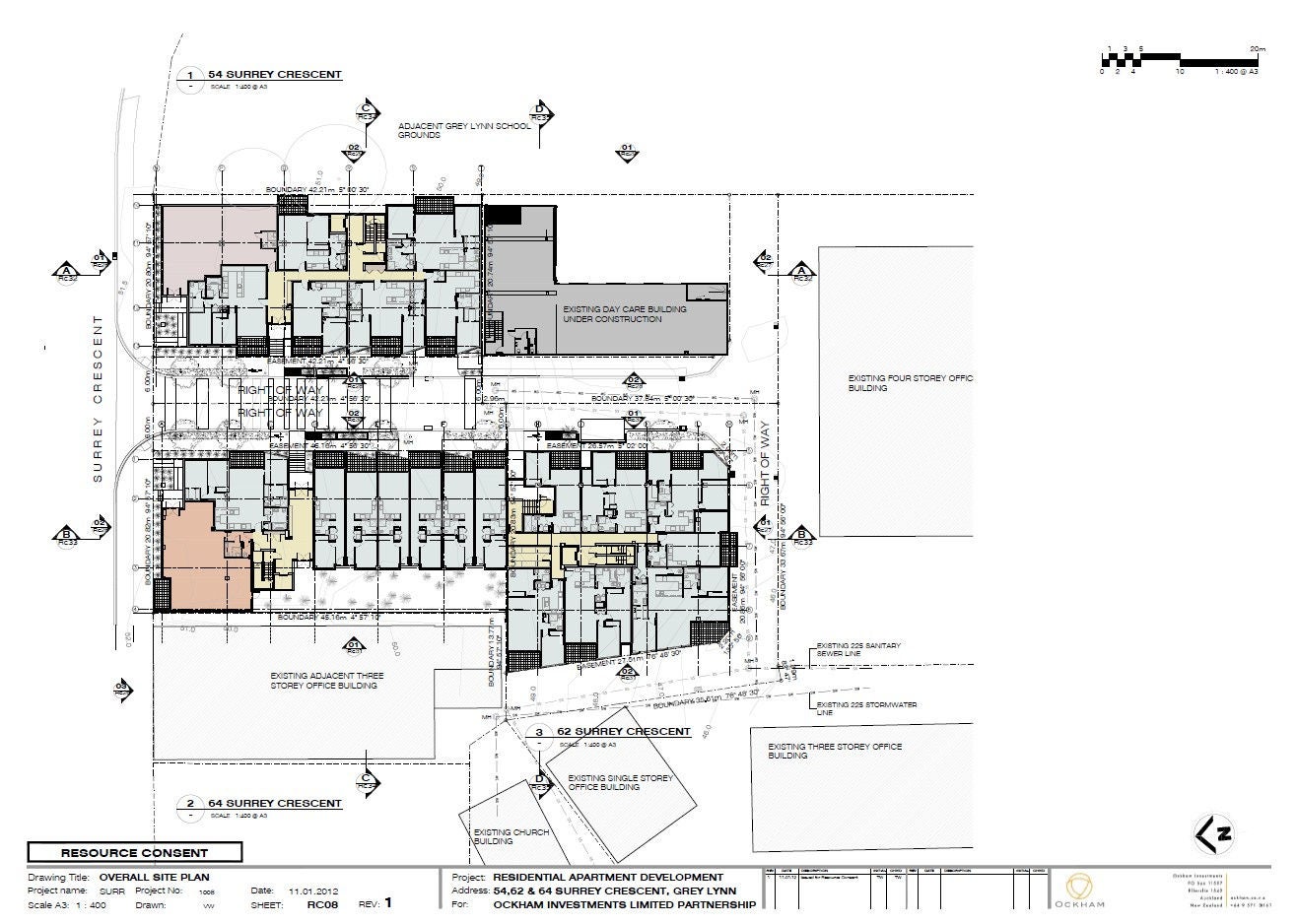

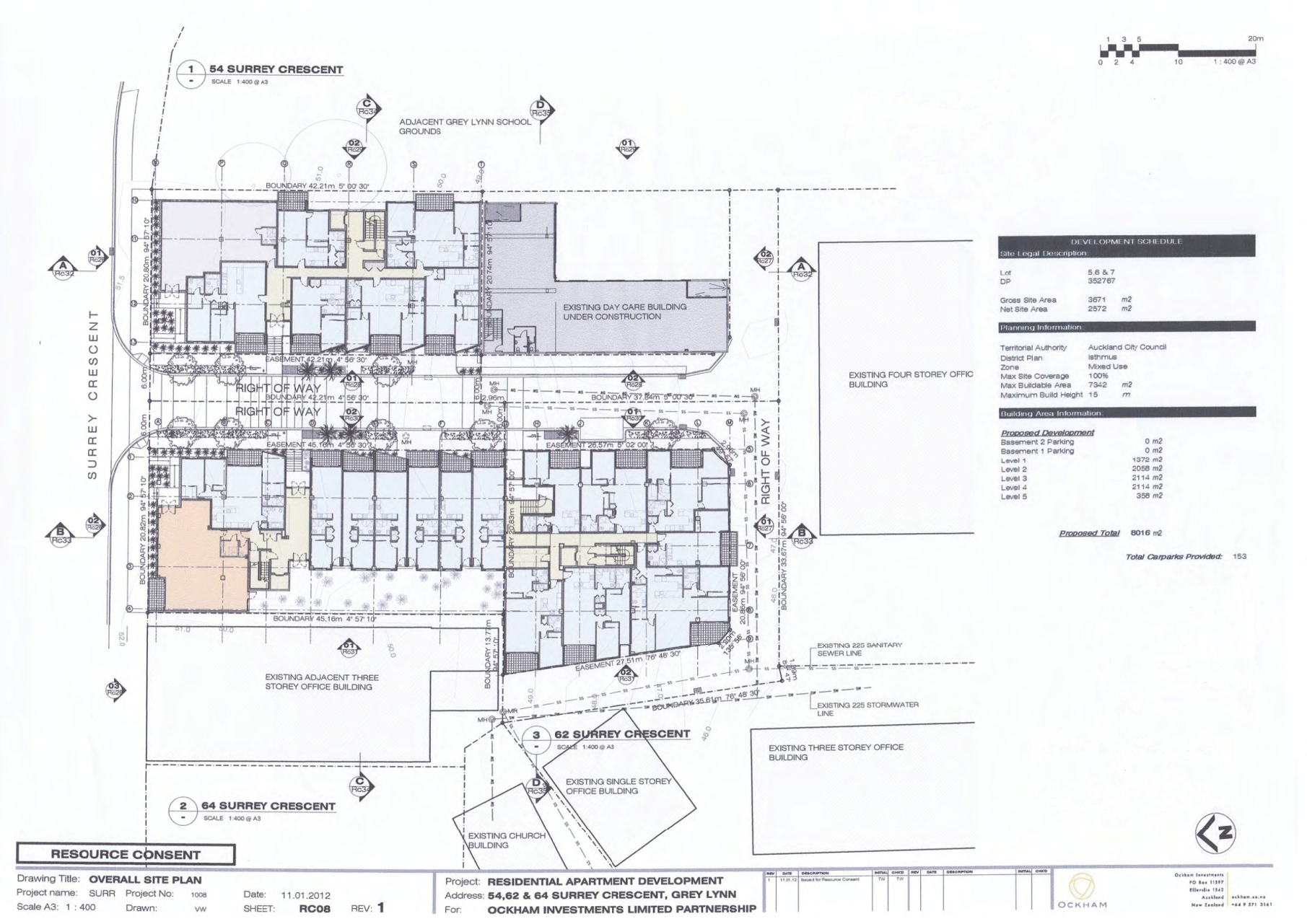

Overall site plan.

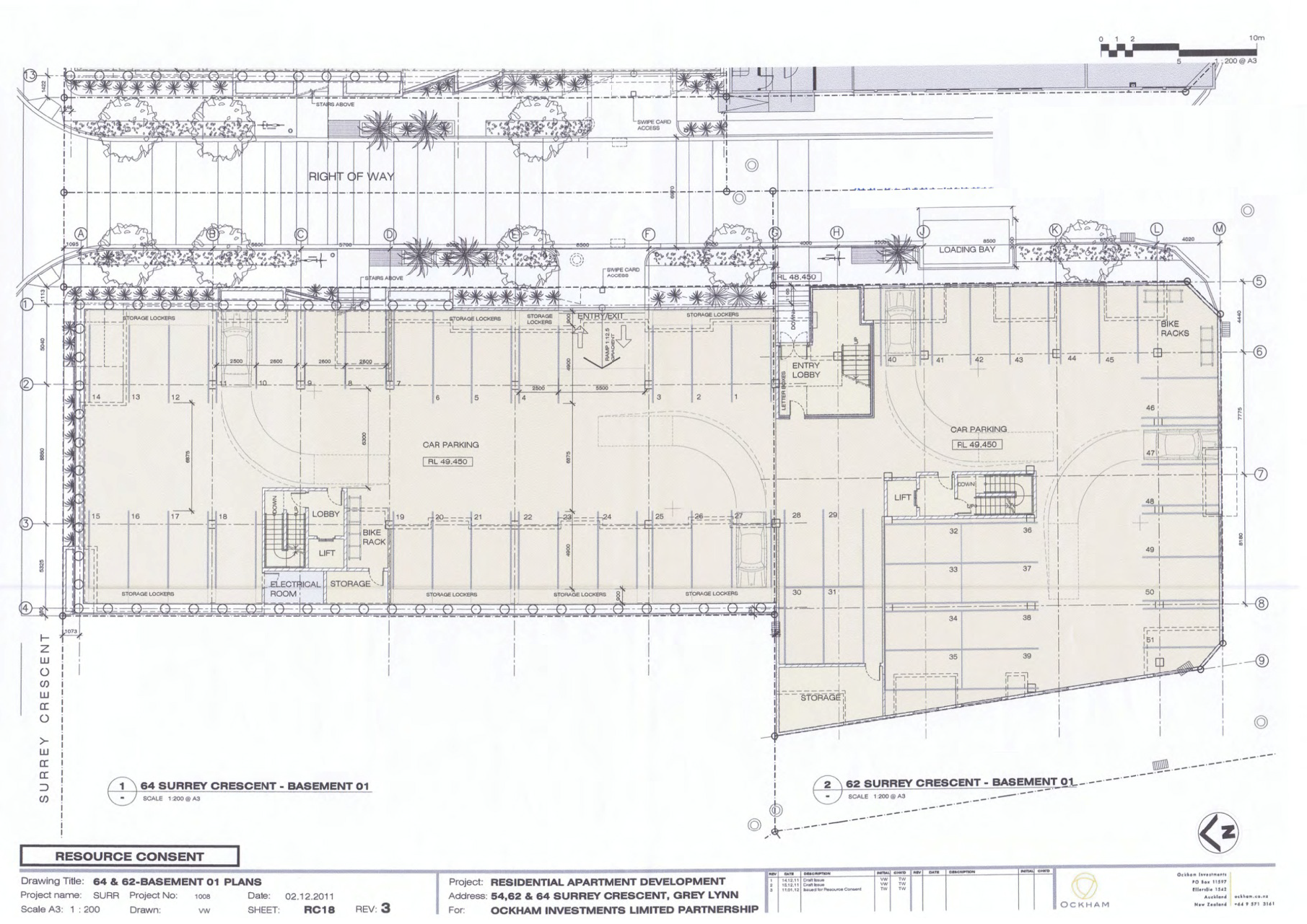

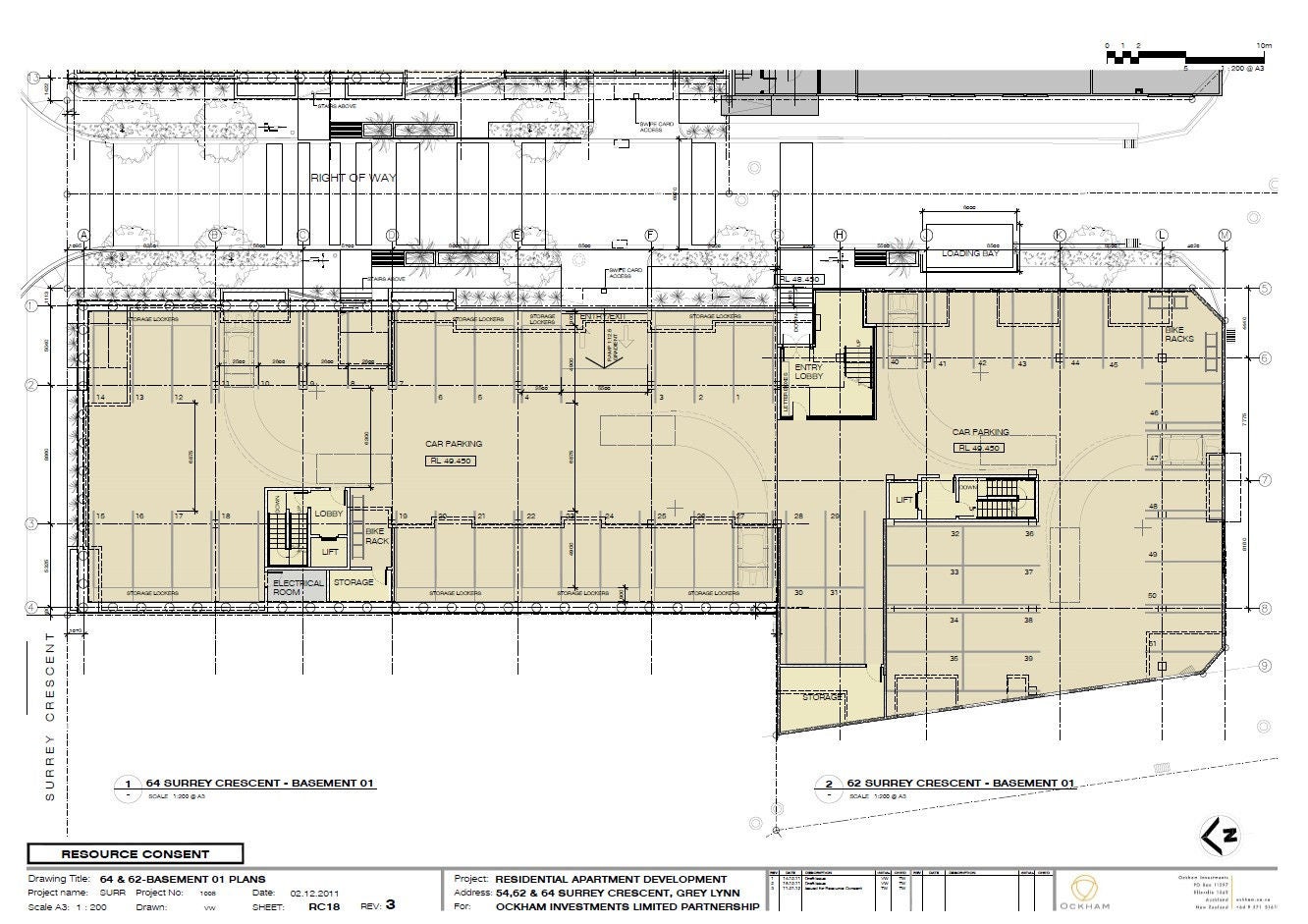

Basement plan 62-64 Surrey Crescent

Architectural drawings on the Isaac apartments.

Level 1.

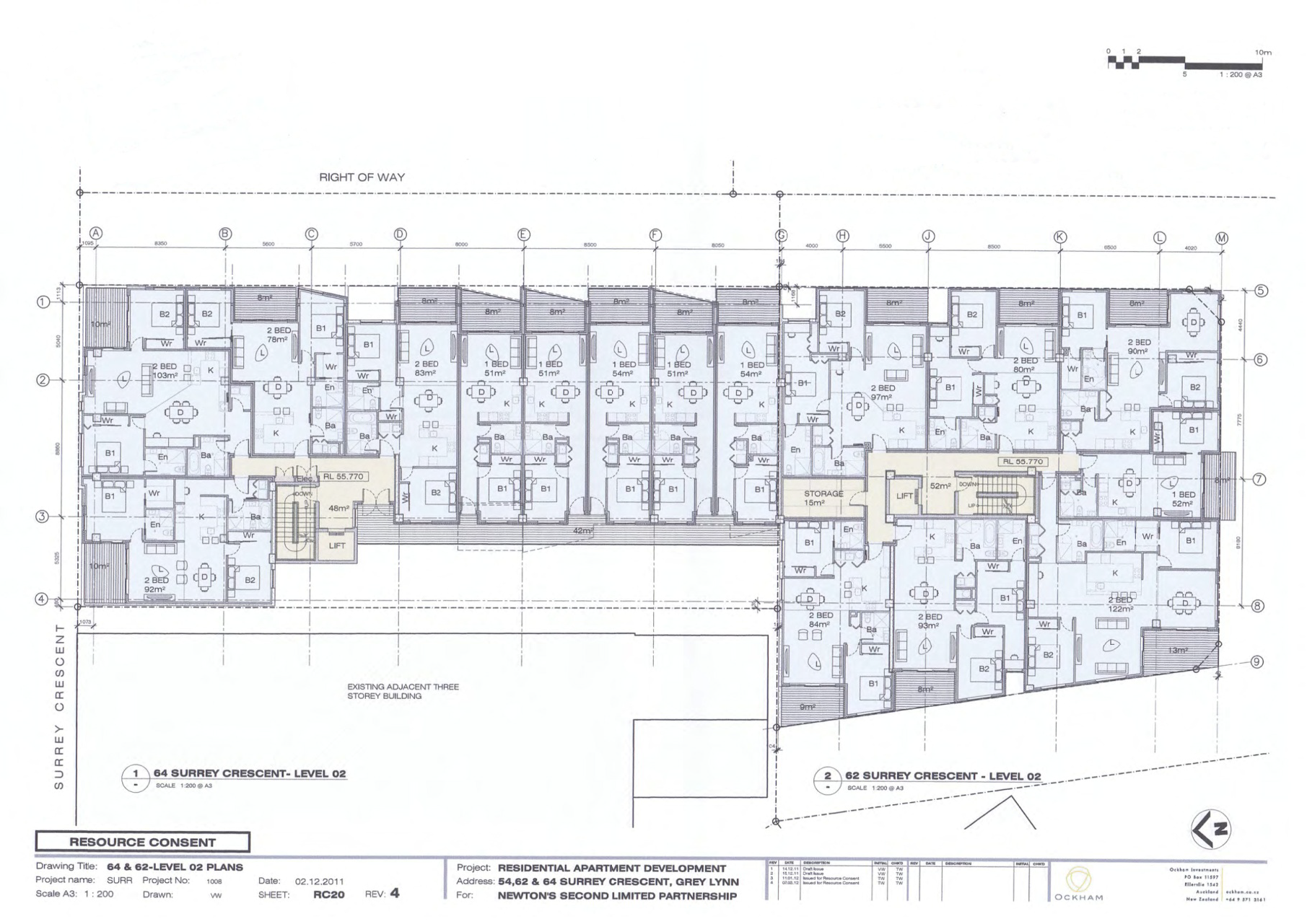

Level 2.

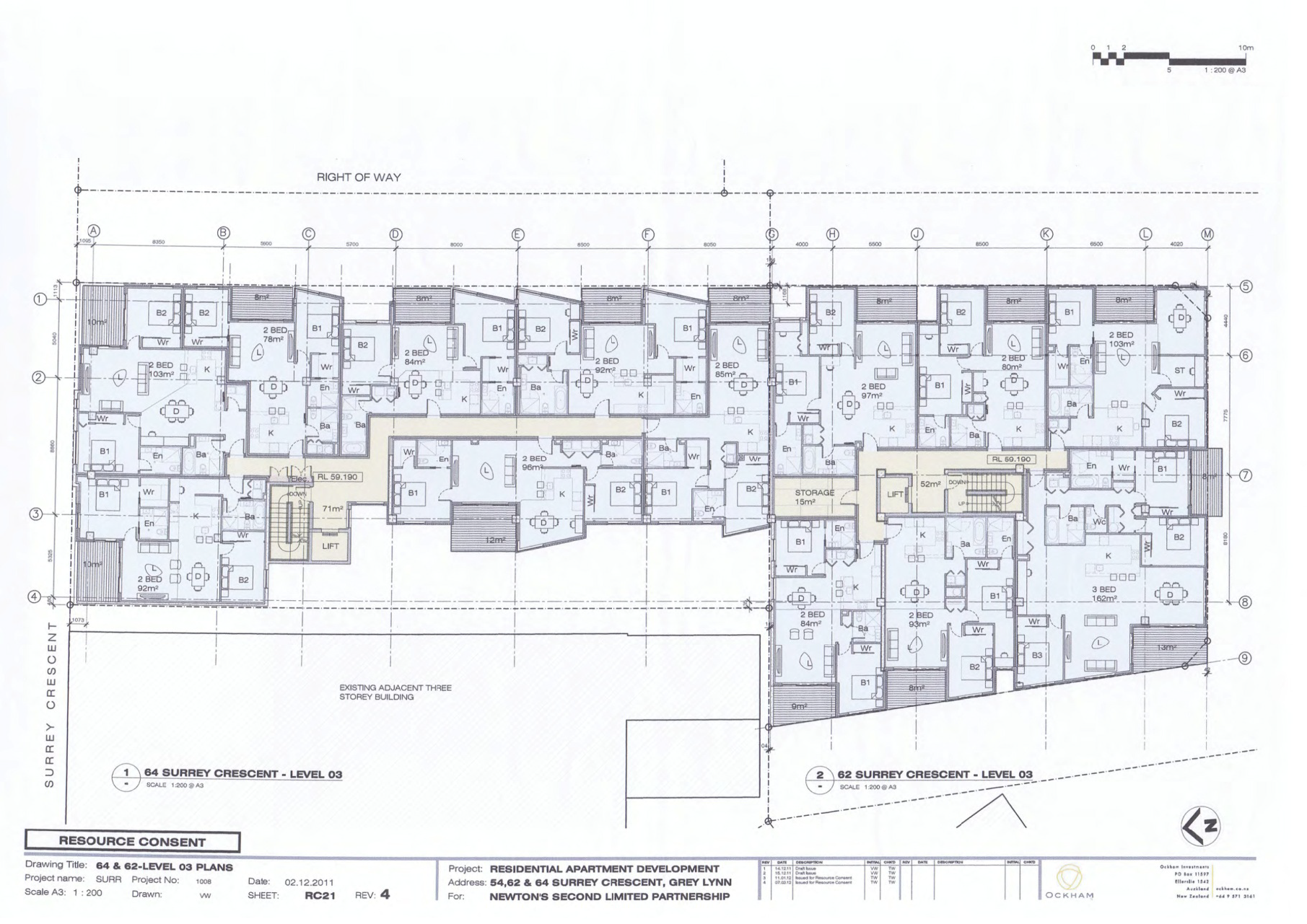

Level 3.

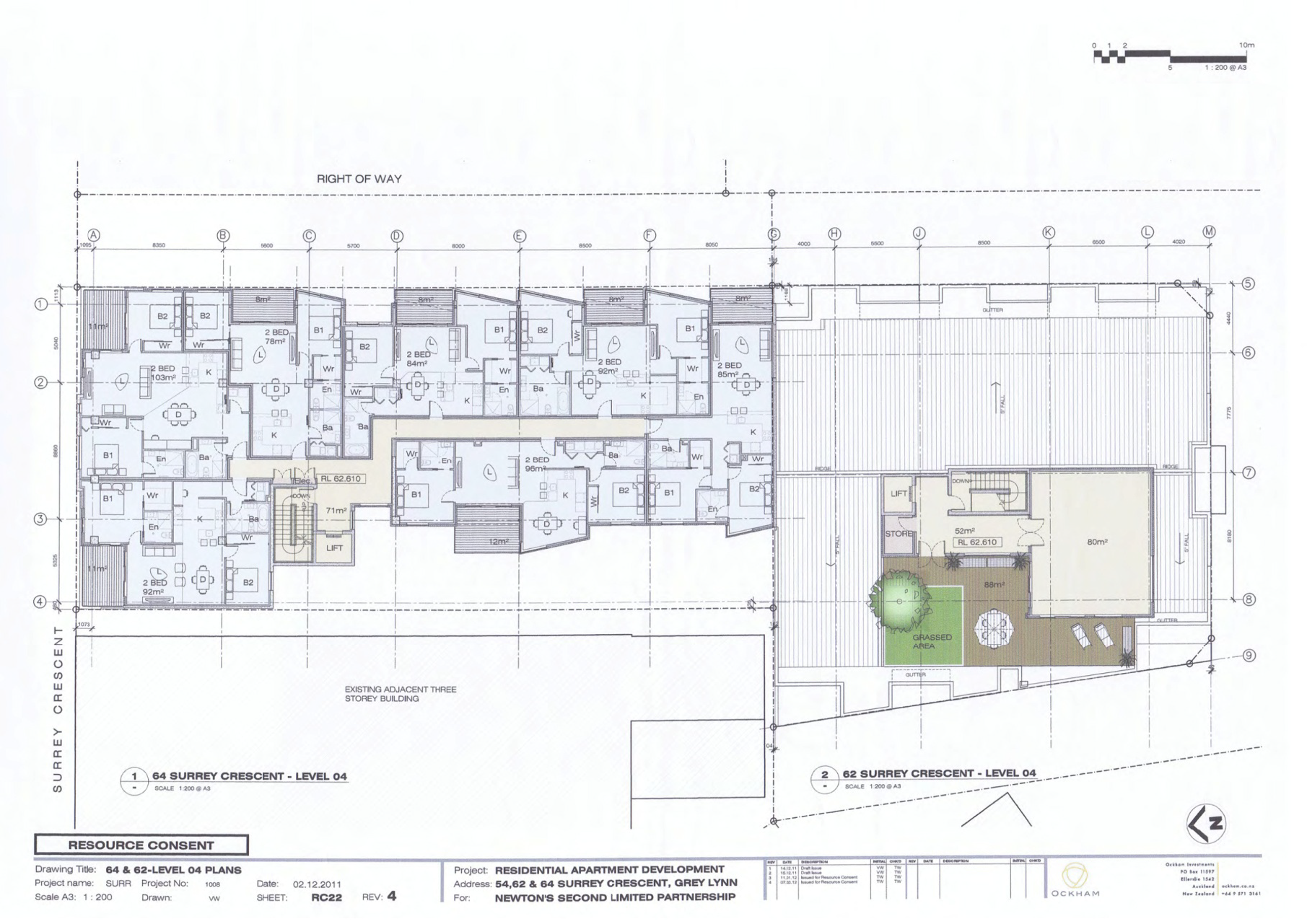

Level 4.

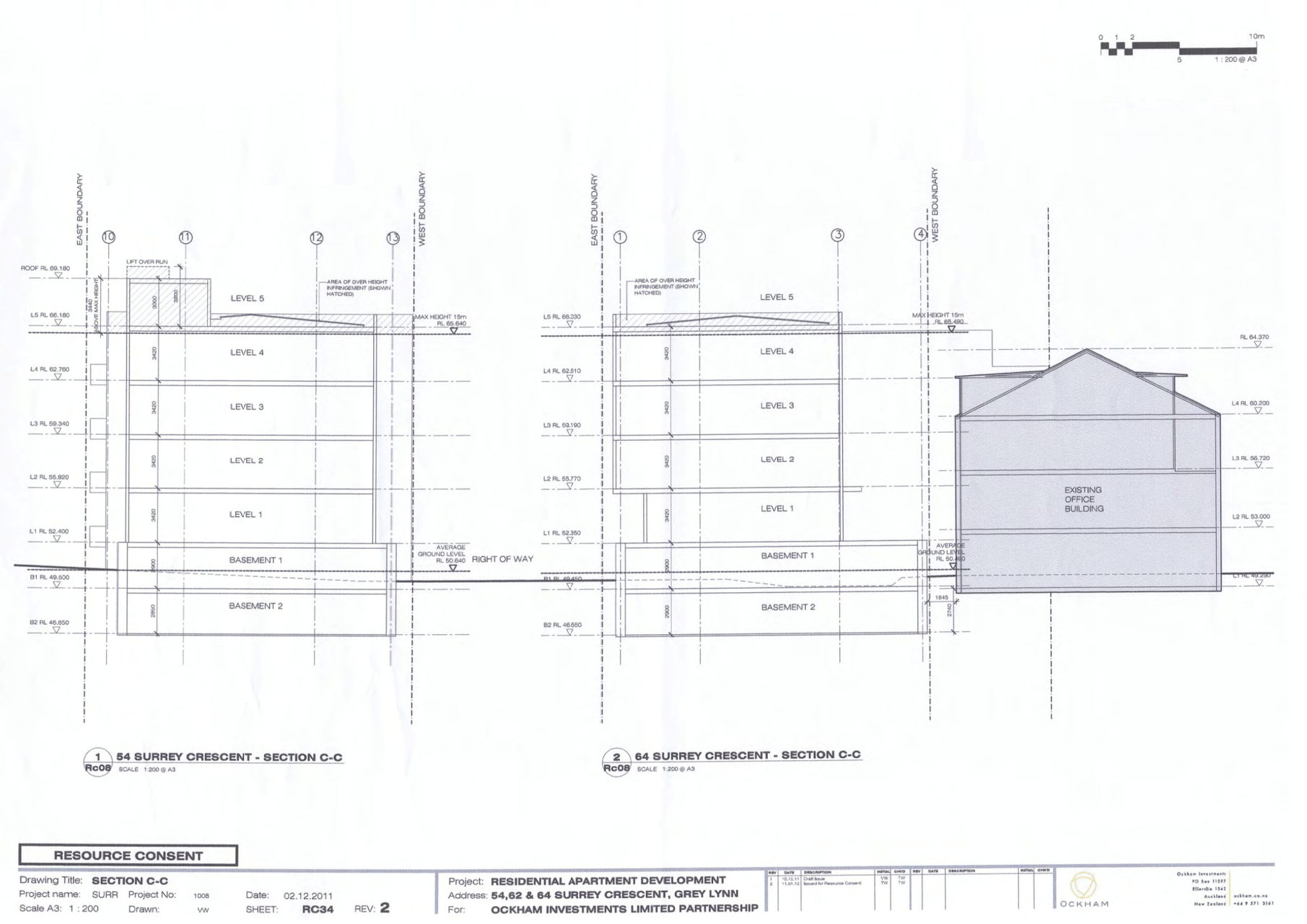

Cross section

Download the PDF

The Isaac

The development is within walking distance of West Lynn Village, the Grey Lynn shops and the local school is right next door. The site is well linked to the city centre and other city fringe locations. The street facing site faces a listed heritage building and many other character villas which surround the site.

Regional connections are good and the development is well connected to the road network and bus service.

PDF download 1 MB
